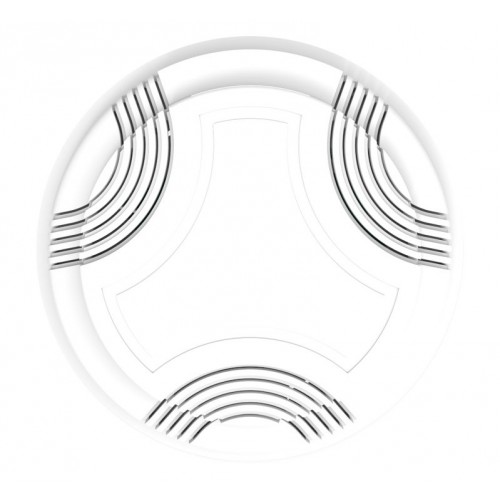

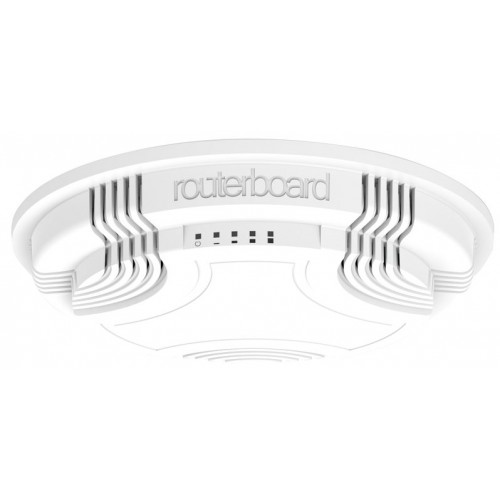

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc. cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

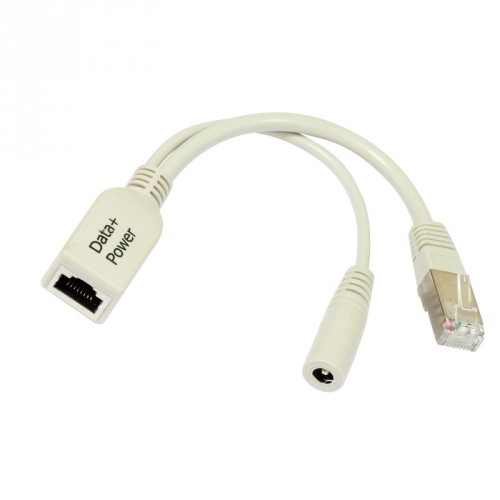

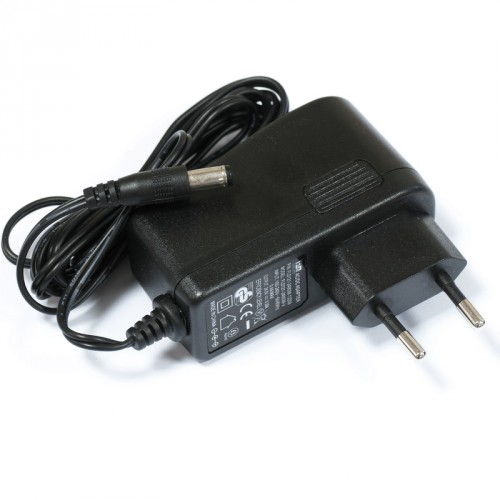

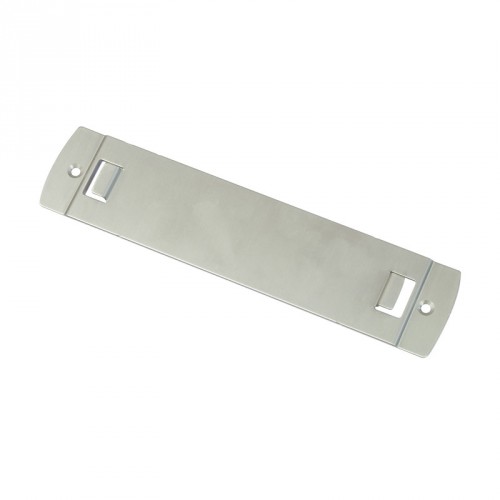

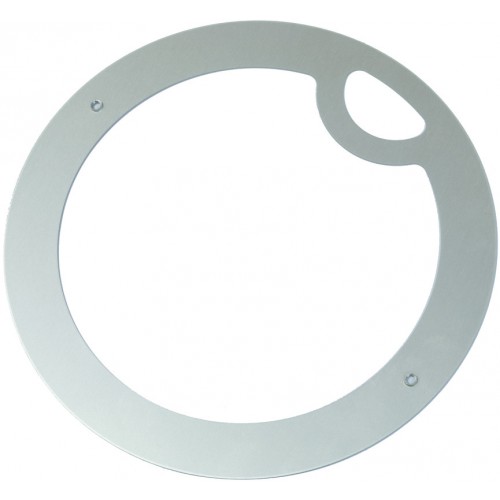

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine. Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

Specifications

• Product code: RBcAP2nD
• Architecture: MIPSBE
• CPU: QCA9533
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Dimensions: 185mm diameter, 31mm height
• License level: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -40°C to 70°C

Powering

• PoE in: 802.3af/at
• PoE in input Voltage: 11-57 V
• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 4 W

Wireless

• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2
• Wireless 2.4 GHz chip model: QCA9533

Ethernet

• 10/100 Ethernet ports: 1
