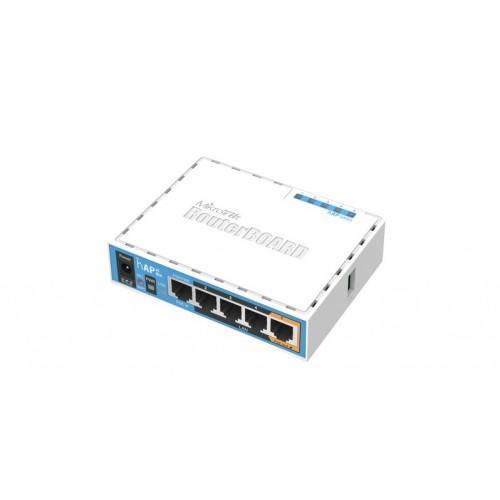

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time. Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

Specifications

• Product code: RB952Ui-5ac2nD
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Dimensions: 113 x 89 x 28mm
• License level: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• Tested ambient temperature: -30 + 70 C

Powering

• PoE in: Passive PoE
• PoE out: Passive PoE
• PoE in input Voltage: 12-30 V
• Number of DC inputs: 2 (DC jack, PoE-IN)
• DC jack input Voltage: 10-30 V
• Max out per port output (input < 30 V): 500 mA
• Max total out (A): 500 mA
• Max power consumption: 8 W
• Max power consumption without attachments: 8W

Wireless

• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 2
• Wireless 2.4 GHz chip model: QCA9531
• Wireless 5 GHz number of chains: 1
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 2
• Wireless 5 GHz chip model: QCA9887

Ethernet

• 10/100 Ethernet ports: 5

Peripherals

• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 1
