Device Interface

• 802.11b/g/n wireless with WPA/WPA2 encryption
• WPS button / reset button

LEDs

• Power/Status

Functionality

Support Functions

• Smart remote control
• Push notifications
• Energy usage statistics
• Power scheduling
• Overheat protection

Physical

Dimensions

• 96.5 x 62 x 76.7 mm

Weight

• 180 g (EU)
• 173 g (UK)

Power

• Input: 100 to 240 V AC

Maximum Load

• 16A, 250V

Power Consumption

• Maximum 5 W

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC
• UL

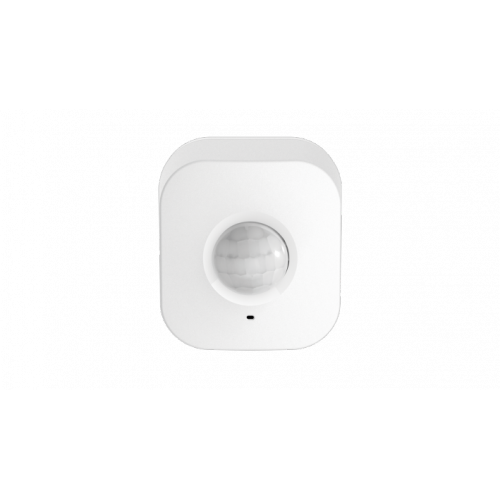

DCH-S150 Wi-Fi Motion Sensor

Device Interfaces

• 802.11b/g/n wireless with WPA/WPA2 encryption
• WPS button / reset button

LED

• Status/WPS

PIR Sensor

• 8 metres (100° horizontal / 80° vertical) detection range

Antennas

• One internal antenna

Plug Type

• Region dependent

Physical

Dimensions

• 58 x 54 x 43.5 mm (2.28 x 2.13 x 1.71 inches)

Weight

• 80 grams (2.82 ounces)

Power

• Input: 220 to 240 V AC, 50/60 Hz

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, CE
• UL, CE/LVD

DCS-935L Monitor HD

Camera  Hardware Profile

• 1/4” Megapixel progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination: 0 lux with IR LEDs on
• Built-in Infrared-Cut Removable (ICR) Filter module
• 4X digital zoom
• Lens: Fixed length 2.38 mm
• Aperture: F2.4
• Angle of view:
  • (H) 78.44°
  • (V) 47.9°
  • (D) 85.98°
• Minimum object distance: 434 mm
• Exposure Time: 1/7.5 to 1/24,000 sec.
• Built-in microphone

Image Features

• Time stamp and text overlays
• Configurable motion detection windows

Video Compression

• Simultaneous H.264/MJPEG format compression
• JPEG for still images

Video Resolution

• 1280 x 720 at frame rates up to 30 fps

Audio Compression

• AAC
• G.711

Connectivity

• 802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption

Advanced Features

Event Management

• Motion detection
• Sound detection

General

Dimensions

• 58.0 x 84.5 x 124.9 mm (2.28 inches x 3.33 inches x 4.92 inches)

Weight

• 160.0 g (5.6 ounces) ± 5%

Power

• 5 V DC 1.2 A, 50/60 Hz

Power Consumption

• 3.5 watts maximum

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70˚ C (-4 to 158 ˚F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC Class B
• C-Tick

¹ mydlink™ Home app is available for iOS and Android devices. Please refer to the mobile app’s store page to check whether your device is compatible.
