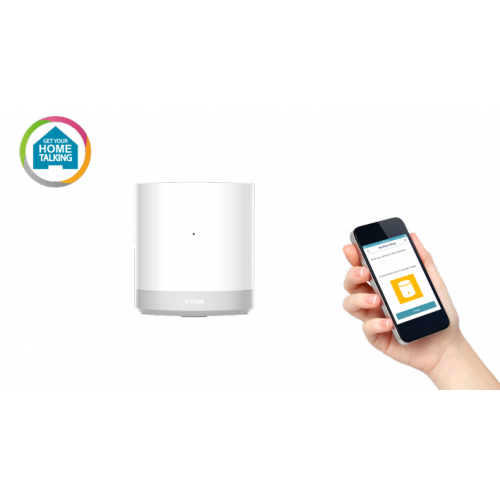

Connected Home Hub (DCH-G020)

Network Protocols

• ARP, ICMP, TCP/IP, IPv4 and IPv6, HNAP, DHCP client, NTP client, Bonjour. 802.11b/g/n, Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz
• Wi-Fi: 2.4 GHz
• AP mode

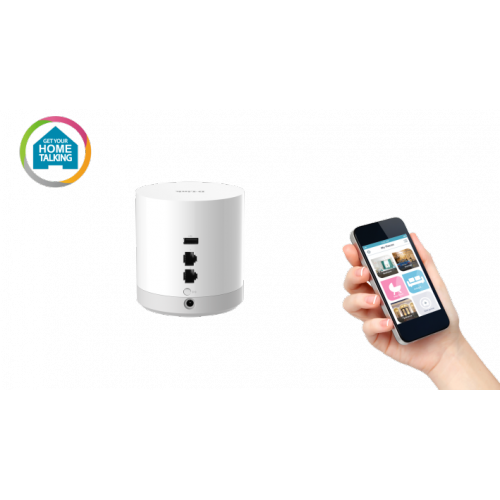

Ports

• USB 2.0
• 2 x 10/100 Ethernet

Buttons

• WPS & Z-Wave pairing / unpairing
• Reset

LED

• Status

Physical

Dimensions

• 100 x 100 x 110 mm

Weight

• 180 g

Power

• 5 V / 2 A

Temperature

• Operating: 0 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, CE, Wi-Fi, Z-Wave Plus

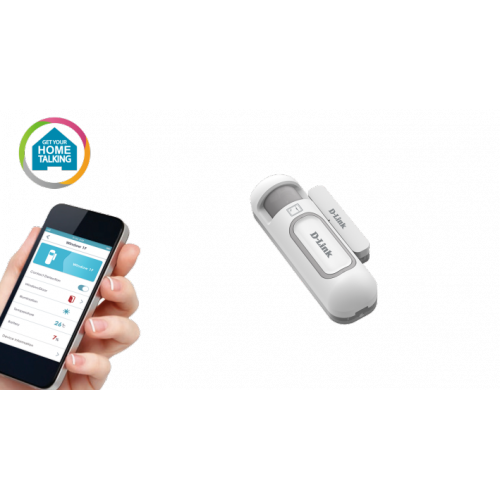

Door & Window Sensor (DCH-Z110)

Network Protocols

• Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz

Buttons

• Tamper switch & pairing/unpairing button

LED

• Status

Physical

Dimensions

• Sensor: 96 x 28 x 23 mm
• Magnet: 50 x 10 x 12 mm

Weight

• 34.1 g

Power

• Included 3 V battery (CR123A)

Temperature

• Operating: -10 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, Z-Wave Plus

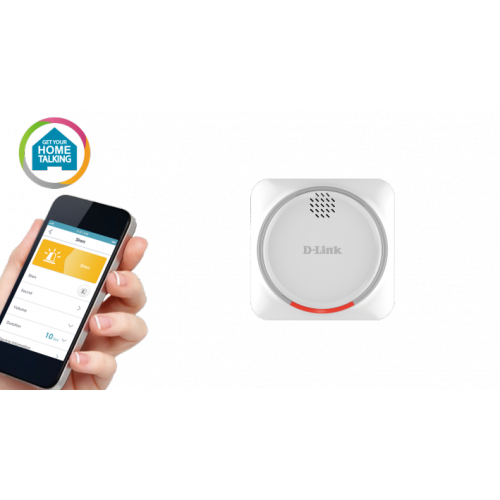

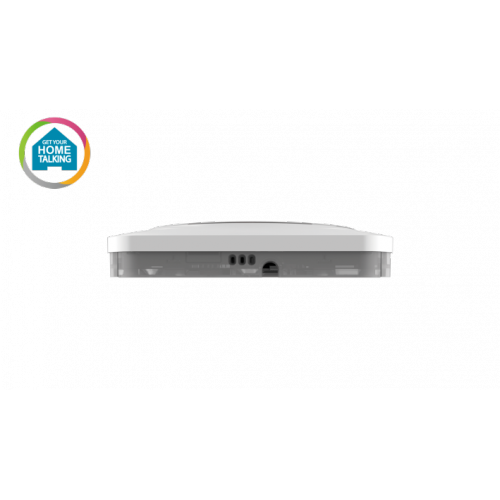

Siren with optional battery back-up (DCH-Z510)

Network Protocols

• Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz

Buttons

• Tamper switch & pairing / unpairing / reset button

LED

• Status

Siren

• 110 dB
• 6 available sounds

Physical

Dimensions

• 110 x 110 x 19 mm

Weight

• 125 g

Power

• 5 V / 1.2 A
• Optional 1150 mAh lithium battery support (BL-5C)¹

Temperature

• Operating: -10 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, Z-Wave Plus

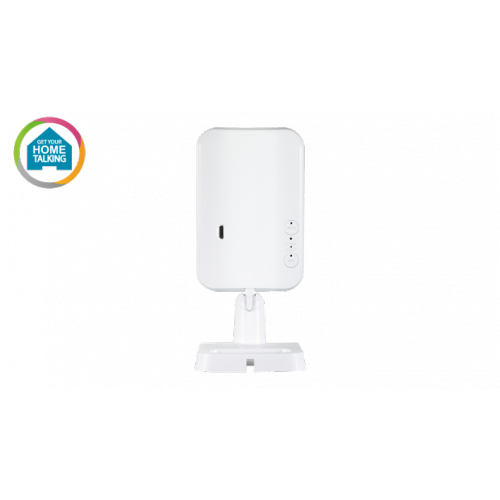

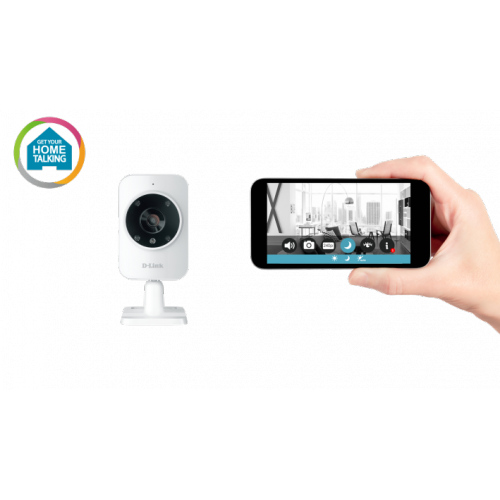

DCS-935L Monitor HD

Camera  Hardware Profile

• 1/4” Megapixel progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination: 0 lux with IR LEDs on
• Built-in Infrared-Cut Removable (ICR) Filter module
• 4X digital zoom
• Lens: Fixed length 2.38 mm
• Aperture: F2.4
• Angle of view:
  • (H) 78.44°
  • (V) 47.9°
  • (D) 85.98°
• Minimum object distance: 434 mm
• Exposure Time: 1/7.5 to 1/24,000 sec.
• Built-in microphone

Image Features

• Time stamp and text overlays
• Configurable motion detection windows

Video Compression

• Simultaneous H.264/MJPEG format compression
• JPEG for still images

Video Resolution

• 1280 x 720 at frame rates up to 30 fps

Audio Compression

• AAC
• G.711

Connectivity

• 802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption

Advanced Features

Event Management

• Motion detection
• Sound detection

General

Dimensions

• 58.0 x 84.5 x 124.9 mm

Weight

• 160.0 g

Power

• 5 V DC 1.2 A, 50/60 Hz

Power Consumption

• 3.5 watts maximum

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70˚ C (-4 to 158 ˚F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC Class B
• C-Tick

¹ Battery not included. Supports BL-5C 1150 mAh lithium battery.
