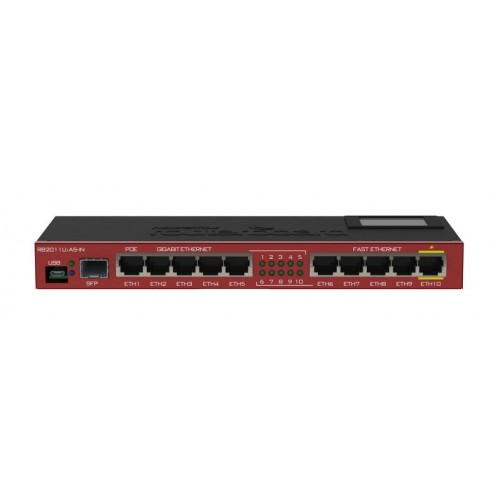

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS. RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

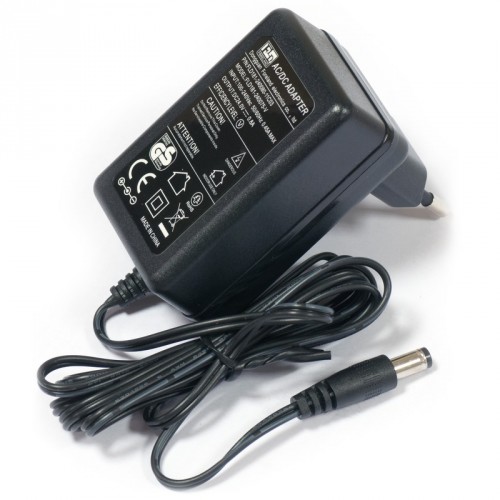

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included). There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA. RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply.  Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

Specifications

• Product code: RB2011UiAS-IN
• Architecture: MIPSBE
• CPU: AR9344
• CPU core count: 1
• CPU nominal frequency: 600 MHz
• Dimensions: 214mm x 86mm for PCB
• License level: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 128 MB
• Storage type: NAND
• Tested ambient temperature: -40°C to 60°C

Powering

• PoE in: Passive PoE
• PoE out: Passive PoE
• PoE in input Voltage: 8-30 V
• Number of DC inputs: 2 (PoE-IN, DC jack)
• DC jack input Voltage: 8-30 V
• Max out per port output (input < 30 V): 510 mA
• Max total out (A): 510 mA
• Max power consumption: 6 W
• Max power consumption without attachments: 6W

Ethernet

• 10/100 Ethernet ports: 5
• 10/100/1000 Ethernet ports: 5

Fiber

• SFP DDMI: Yes
• SFP ports: 1

Peripherals

• Serial port: RJ45
• Number of USB ports: 1
• USB Power Reset: Yes
• USB slot type: USB type A
• Max USB current (A): 2

Other

• PCB temperature monitor: Yes
• Voltage Monitor: Yes
